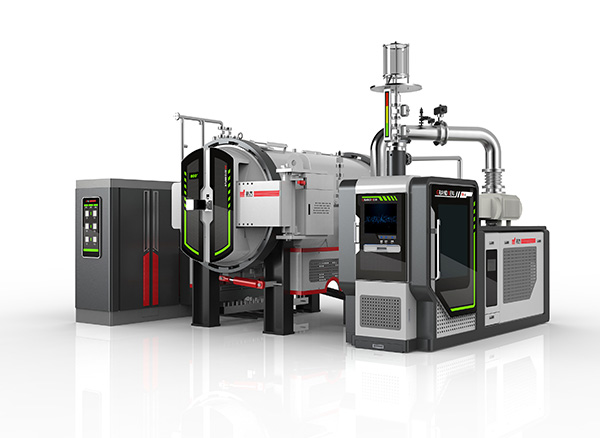

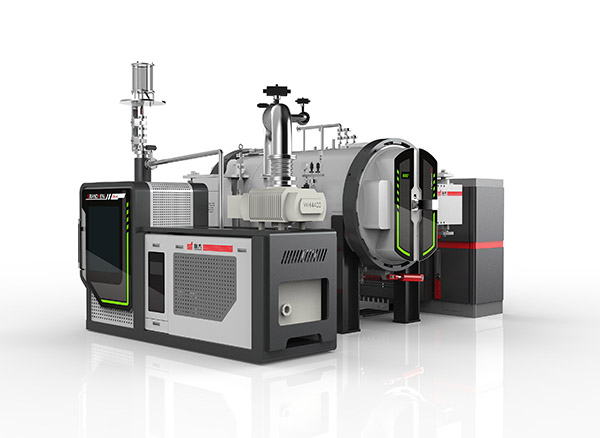

Grand New sinter HIP furnace series are designed to integrate the functions of pressure de-waxing, vacuum de-waxing, vacuum sintering, TORVAC, partial pressure sintering, pressure sintering, atmosphere sintering, cooling and etc.
To meet various working process requirements, process gases like Ar, H2, CH4 and N2 could be used to control chamber atmosphere under different pressure and temperature.
Horizontal design for easy loading, unloading and maintenance. Automatic control during whole process.
| Type |
GN3312P-1-VI |
GN4412P-1-VI |
GN5518P-1-VI |
|
Dimension of usable space |
300×300×1200 |
400×400×1200 |
500×500×1800 |
|
Max. loading weight |
500KG |
600KG |
1500KG |
|
Heating power/ Total power |
240KW/280KW |
240KW/280KW |
370 KW/410KW |
|
Max. designing pressure |
1MPa |
||
|
Max. working pressure |
0.96MPa |
||
|
Max. designing temperature |
1600℃ |
||
|
Max. working temperature |
1550℃ |
||
|
Temperature control |
3 zones |
||
|
High temperature uniformity |
≤±5℃ |
||
|
Max. heating up speed (without loading) |
15℃/min（≤1000℃）； |
||
|
Max. Vacuum |
≤ 2Pa, tested in cold and clean chamber |
||
|
Leak rate |
≤ 2Pa/h, tested in cold and clean chamber |
||
|
Wax collecting rate |
≥98﹪ |
||
|
Cooling（with loading） |
From 1450 ℃ to 100℃, 5~7h |
From 1450 ℃ to 100℃, 6~8h |
From 1450 ℃ to 100℃, 8~10h |
